Anybody have an elec diagram? (For a TA)

Collapse
X
  • Filter
  • Time
  • Show
Clear All
new posts

  • Anybody have an elec diagram? (For a TA)

    I need to know where the LEFT & RIGHT blinker signal wires are behind the instrument panel... I need to tap into them.
    1997 Trans Am WS6 Black M6
    370 RWHP / 352 TQ
    CC306 & Comp behives, LT1 Extreme Duty timing set, 1.6 RR's, CSR Elec Water Pump, Pacesetter LT's & ORY, GMMG w/ Ovals, K&N, Air Foil, TB Bypass, !AIR, !EGR, !CAGS, 160 deg thermo, LT4 KM, PCM tuning by Total-ReCal, March Pullies, Pro 5.0, 4.11 gears, LS1 alum DS, BMR strut tower brace, UMI SFC's, LCA's w/relo brackets & panhard

  • #2

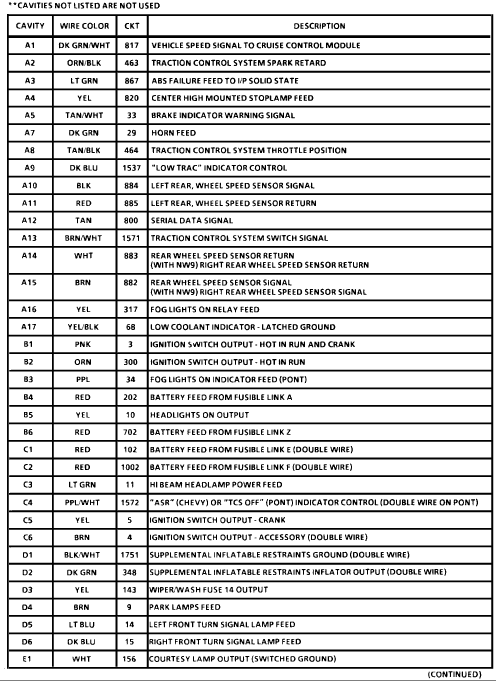

    Location: Between LH Kick Panel And Steering Column











    Pretty sure you are lookin for D5 and D6.
    Richard Harvey Jr.
    '94 T/A LT1 (stock) - SOLD
