Originally posted by Joe 1320Yup, and it's made from a rare element called unobtainium. just try and get one in your hands.Rob B 95Z A4 Tech Page (Part numbers / locations, how to's, schematics, DTC's...) Home Page - shbox.com
Comment
-
Originally posted by Joe 1320Has MSD even brought the product to market yet? It's been in catalogs for quite some time but I've yet to actually see one.
The "harness" is an extremely simple device that allows you to connect the MSD box to your coil. You would still have to run a wire to ground and a wire to the + terminal in the red battery junction box for a power supply to the MSD.
http://www.msdignition.com/install_access_8.htm
Fred
381ci all-forged stroker - 10.8:1 - CNC LT4 heads/intake - CC solid roller - MoTeC engine management - 8 LS1 coils - 58mm TB - 78# injectors - 300-shot dry nitrous - TH400 - Gear Vendor O/D - Strange 12-bolt - 4.11's - AS&M headers - duals - Corbeau seat - AutoMeter gauges - roll bar - Spohn suspension - QA1 shocks - a few other odds 'n ends. 800HP/800lb-ft at the flywheel, on a 300-shot. 11.5 @ 117MPH straight motor
Comment
-
Originally posted by InjuneerI only said they "developed it"..... not that they were actually making them.
The "harness" is an extremely simple device that allows you to connect the MSD box to your coil. You would still have to run a wire to ground and a wire to the + terminal in the red battery junction box for a power supply to the MSD.
http://www.msdignition.com/install_access_8.htm
How do I run a wire to the ground and the junction box? Like maybe do you have some pictures, and what would I need to splice.96 Camaro Z28, T-tops, 6 Speed, Slp CIA, Flowmaster cat-back, 3:42 gears
Comment
-

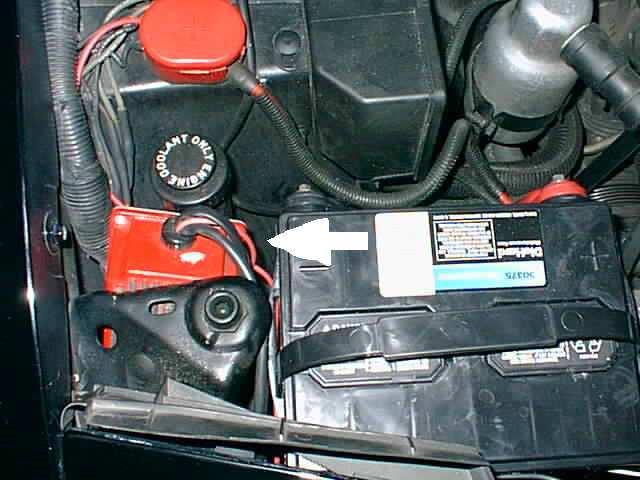

Sometimes you have to think it through.... this isn't rocket science. The MSD box needs +12V power. That means you run a line from the red terminal box to the place you choose to locate your MSD. Not everyone puts them in the sam place. Look at the wire on the box to see what size it is. Get a wire of similar size or one gage heavier. Route it so you can't see it... in front of the radiator is good. MSD claims you don't need a fuse, nor a "switched" power source.
The box gets grounded to the nearest "good" metal ground location. I used the one on the radiator support. You'll see a bunch of other black ground wires going to the same screw. That tells you its a "good" ground. The wire on the box is probbly going to be long enough.
Its possible to do this stuff using a bit of common sense and basic knowledge.Fred
381ci all-forged stroker - 10.8:1 - CNC LT4 heads/intake - CC solid roller - MoTeC engine management - 8 LS1 coils - 58mm TB - 78# injectors - 300-shot dry nitrous - TH400 - Gear Vendor O/D - Strange 12-bolt - 4.11's - AS&M headers - duals - Corbeau seat - AutoMeter gauges - roll bar - Spohn suspension - QA1 shocks - a few other odds 'n ends. 800HP/800lb-ft at the flywheel, on a 300-shot. 11.5 @ 117MPH straight motor
Comment
-
Originally posted by 96Camarowell, is there like a place you splice it on the wireing harness to do all this? i'm not good with wireing
Comment
-
I'm not sure why they couldn't follow my instructions.... run a wire from the +12V terminal box and another from a good ground. I gave a link to the harness. No other wiring required. No "splicing" required, other than to connect the power wire from the red box to the corresponding wire on the MSD box. The MSD stuff comes with decent instructions.
I would agree.... if you can't follow, get someone to do it for you. This is about as basic as it gets.Fred
